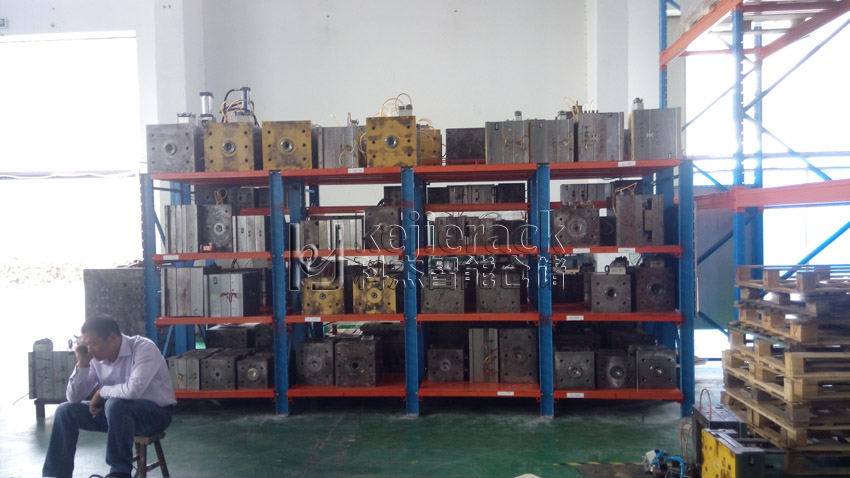

Product characteristics of standard drawer die holder:
Three-grid four-layer standard drawer die stand; specification; high H2000*deep D615*long L3100MM per cell length 888
1. Each drawer board can bear 800-1000KG
2. The crane (traveling crane) bears 800-1000KG
3. Drawer board can be pulled out 55%.
4. Safety and Reliability Additional Safety Devices
5. Easy to operate with bearing combination, sliding balance and independent lifting die device
6. Save space, cover an area of 1.8 square meters, can store dozens of sets of small and medium-sized molds.
7. Simple structure, assembled by a variety of components, easy to disassemble, transport and assembly.

Technical parameters of standard drawer die holder:
1. The column is made of 10 # channel steel and the column slant is 25 * 25 square pass.
2. Drawer board bracket adopts 50*50 angle iron, drawer panel adopts 2MM steel plate.
3. Slide groove is formed by bending 4MM steel plate.
4. Bearing 6403#
5. spray paint
6. Customer-defined color
